Flex Quick Change Plate Setting Machine

Custom Automation

Flex Quick Change Plate Setting Machine

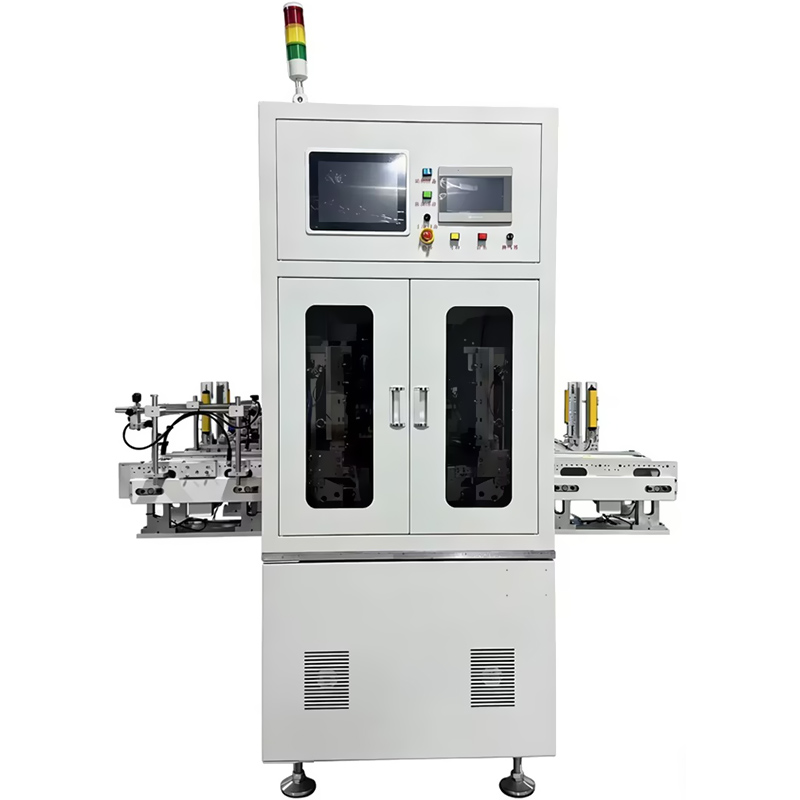

This is an automatic board placement equipment that integrates a Tray loading system and high-precision Pin positioning. It is specially used for automated and precise arrangement of soft boards. High-precision pin positioning technology ensures accurate product positioning, significantly improves equipment utilization and reduces costs.

Service and support dial400 830 1117
Submit requirements
Product introduction

Product introduction

Application scenarios

Widely used in mobile communications, consumer electronics and other fields.

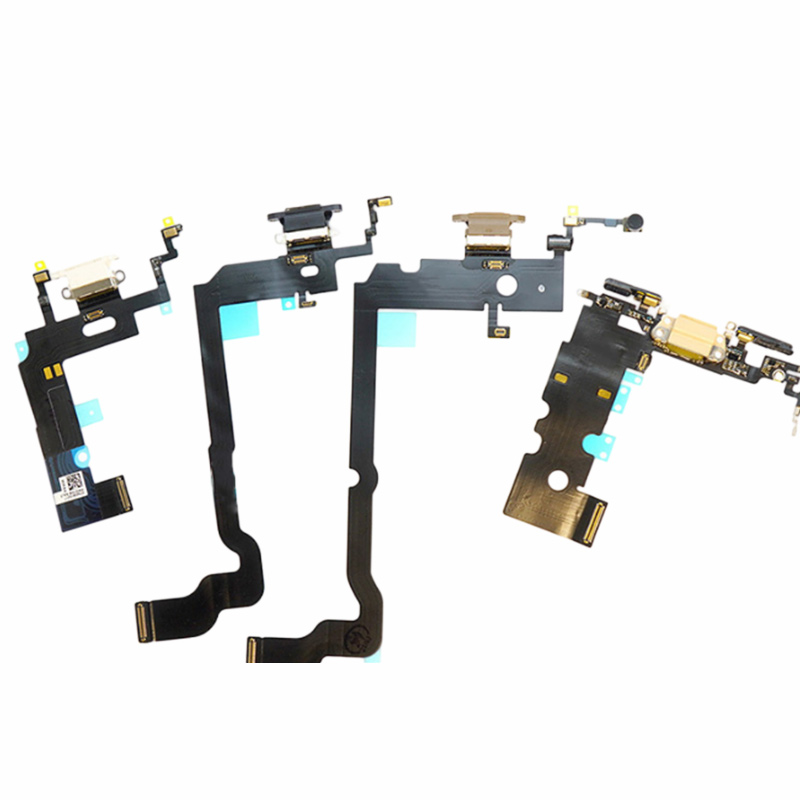

Specially tailored for precision FPC boards of core modules of smart mobile terminals (such as display touch, imaging modules, communication radio frequency, etc.).

Compatible with fully automatic production mode and supports rapid changeover.

Core advantages

More introduction

Standardized quick-change system

Standardized track size: racks and flow channels of different product series can be shared, eliminating the need for redesign and manufacturing, reducing new equipment or modification costs.

Standardization of non-standard suction cup sizes: One suction cup can be quickly switched through the positioning of guide posts and guide bushes, greatly shortening the setup time when handling different products.

Standardized size of non-standard positioning needle plate: The needle plate is quickly switched through the positioning of guide posts and guide bushes to ensure instant and accurate alignment without manual verification.

Technical parameters

Technical parameters

Item Parameters
Size 1500mm × 800mm × 2140mm
CT ≤20s
Capacity 54000 pcs/h
Yield ≥99.9%
Operation rate ≥95%
Type change time 30 minutes
