Double servo silent riveting press
Adopts servo motor direct drive structure with small impact force.
The crimping stroke, crimping force, and speed are fully programmable, with high positioning accuracy and good repeatability
Real-time monitoring of the crimping force-displacement curve to achieve process quality control
Touch screen settings: crimping height, pressure upper limit, speed, pressure holding time and other parameters. Low energy consumption and simple maintenance.
Three-knife concentric rotating precision wire stripping machine
Wire stripping structure: It adopts three-knives concentric rotating cutting structure, the three knives surround simultaneously, the concentricity is high, and the cutting is stable without swing.
Wire stripping method: multi-layer step-by-step cold cutting and stripping, which can complete the layered stripping of outer skin, shielding, insulation and inner conductor, with a smooth cross-section without burrs.
Stripping accuracy: Stripping length accuracy ≤±0.1mm, servo control of knife depth, no damage to core wires or shielding net.
Drive control: servo motor drive, automatic centering, automatic correction, adaptive cable eccentric compensation, strong consistency.

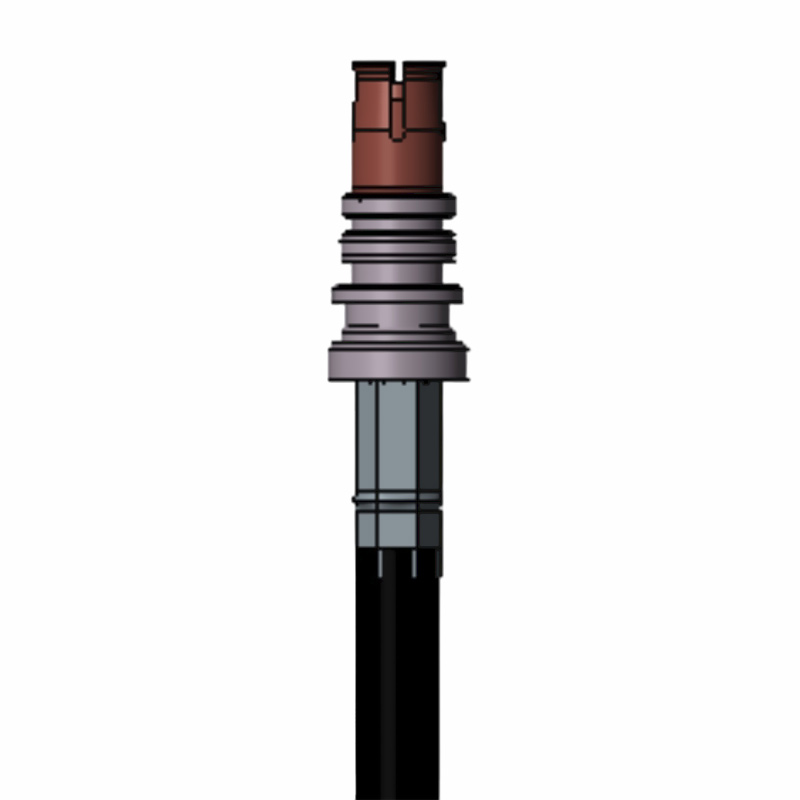

Applicable cables: Support FAKRA RF coaxial cable RG174/RG316, etc.
Number of peeling layers: Supports 1–4 layers of precision peeling to meet the high requirements of RF line processing.
Stability: Stable continuous operation, suitable for high-volume and high-quality production at vehicle level
Braided oscillating universal structure
Universal multi-angle swing, which can realize multi-angle deflection of X/Y/Z axes + Rotating and swinging
Flexible and does not damage the core wire, only acts on the shielding braid, does not scratch the inner insulation, and does not damage the central conductor
The braid is spread evenly, and the speed is adjusted by frequency conversion + The eccentric swing mechanism makes the woven mesh evenly everted and loose
The position and strength are adjustable, and the shaking depth, swing amplitude, rotation speed, and clamping strength can all be set through the program
High concentricity, good stability, small operating vibration, and consistent swing trajectories, ensuring a highly uniform dispersion state of wire harness braiding in the same batch, improving post-process yield
Compact structure and simple maintenance
