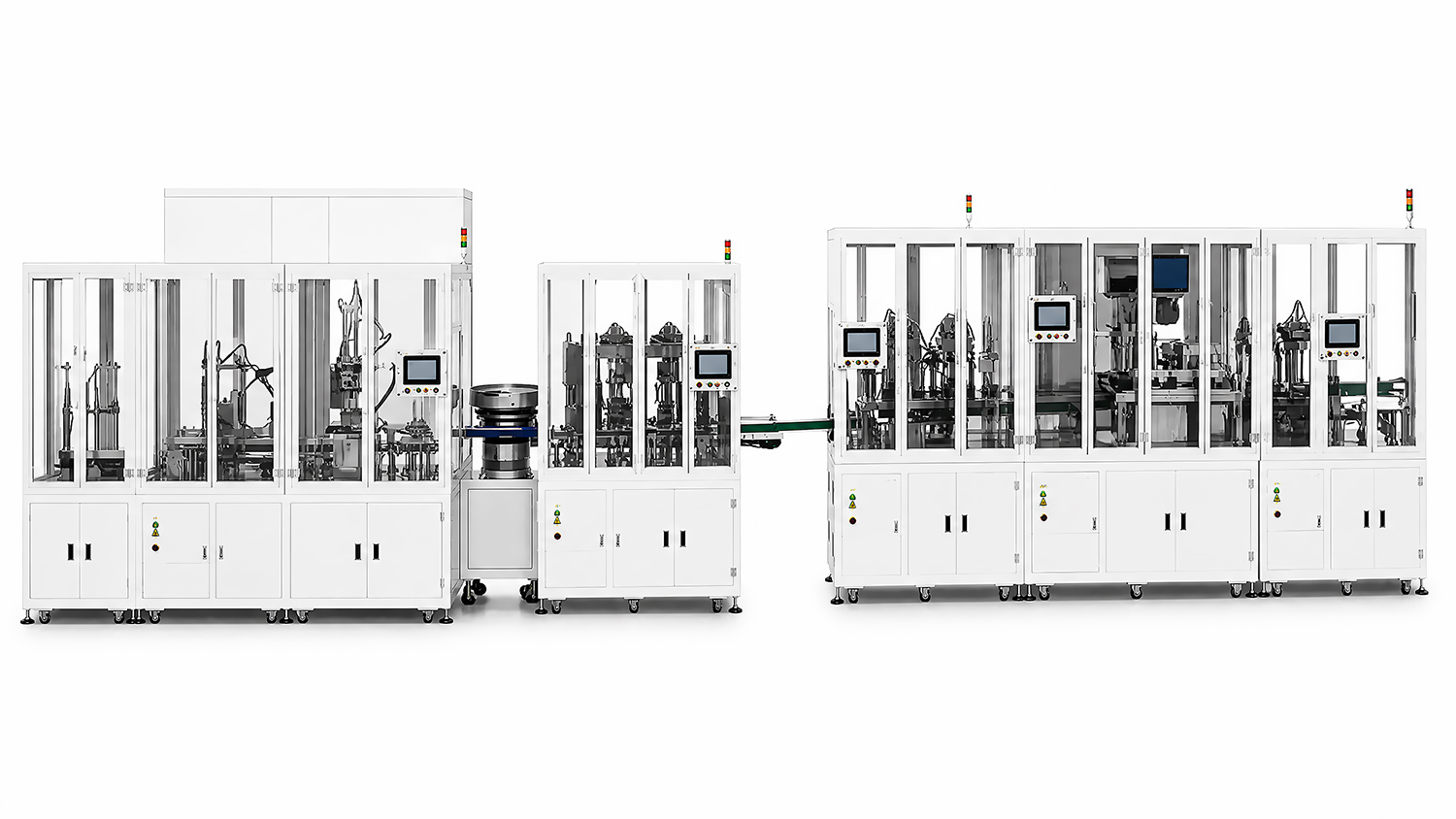

Fully Automatic ExaMAX2 High-Speed Backplane Connector Assembly and Inspection Line

Connectors

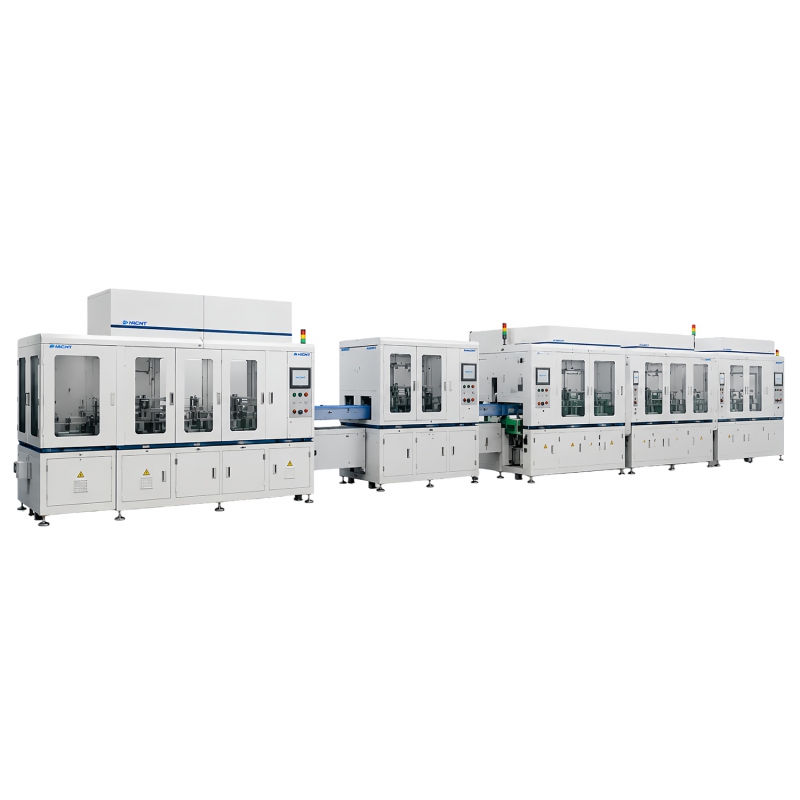

Fully Automatic ExaMAX2 High-Speed Backplane Connector Assembly and Inspection Line

The fully automatic ExaMAX2 high-speed backplane connector assembly inspection machine is a fully automatic assembly inspection equipment that integrates a cam pin system and a high-precision visual inspection system. Precision automation equipment dedicated to high-speed backplane connectors. High-speed cam pin technology ensures precise product assembly, significantly improves product processing cycle time, and reduces manual dependence.

Service and support dial400 830 1117
Submit requirements
Product introduction

Product introduction

Application scenarios

1. Industry: Widely used in communications, data centers, automotive electronics and other fields.

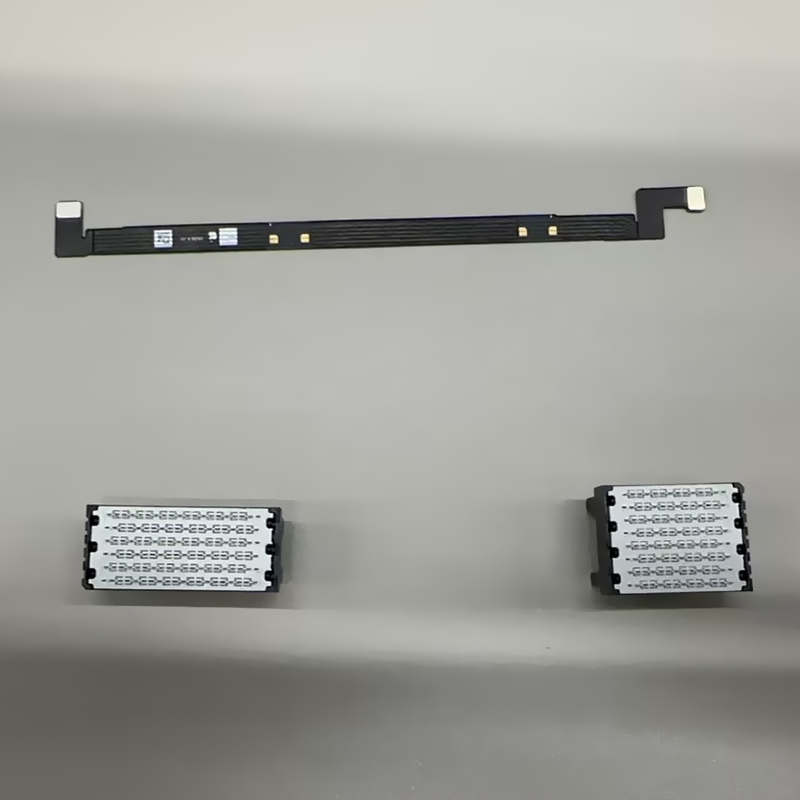

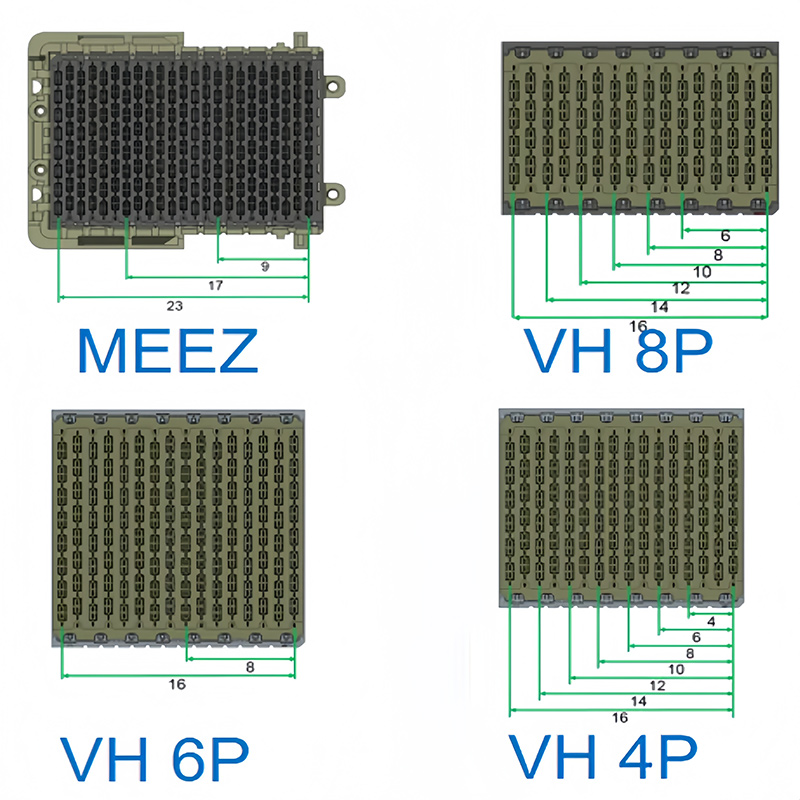

2. Applicable products: Specifically tailored for high-speed connector assembly of core switches, servers, and base station equipment.

3. Production line compatibility: Compatible with fully automatic production mode and supports modular fast switching.

Core advantages

More introduction

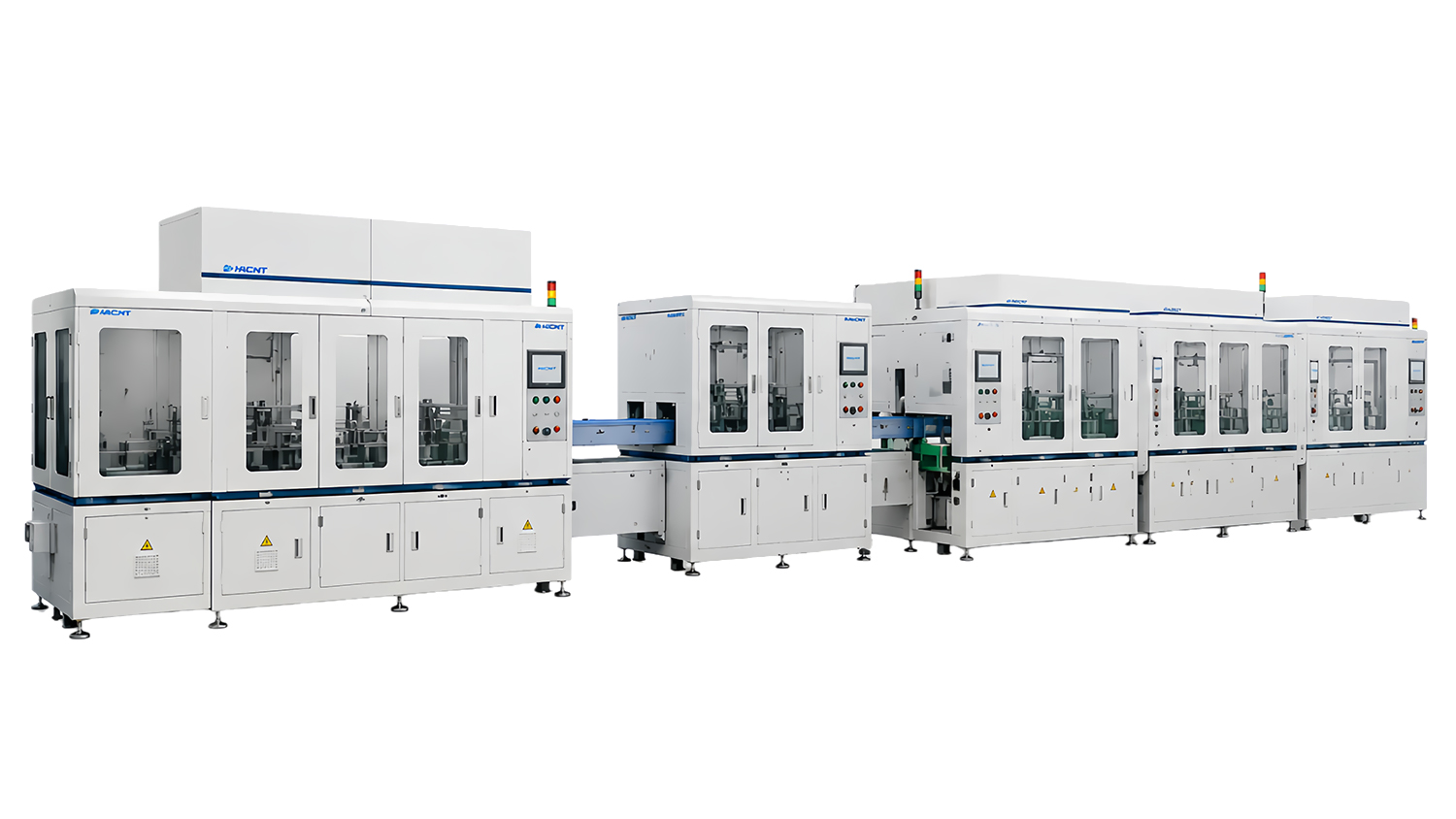

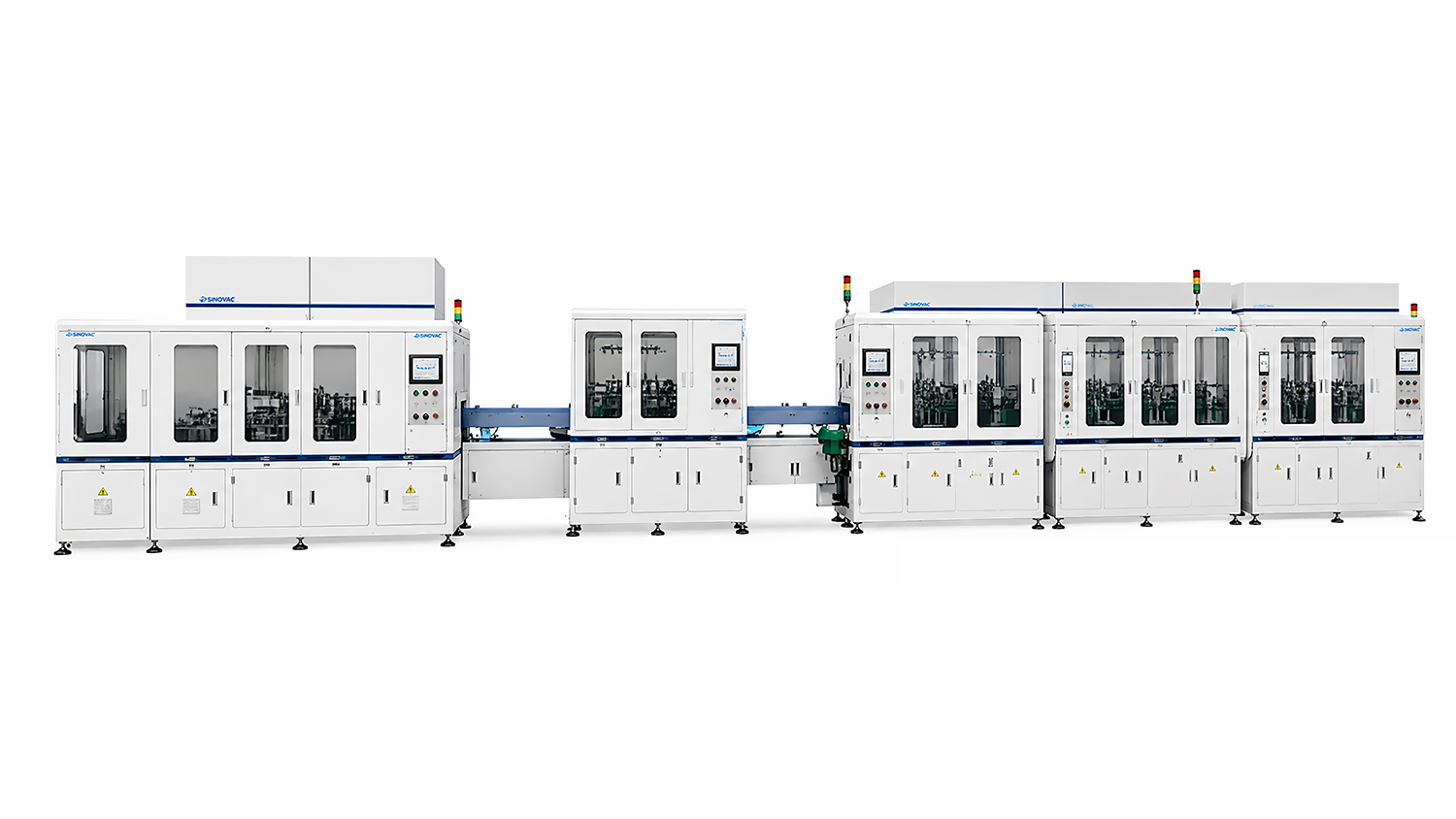

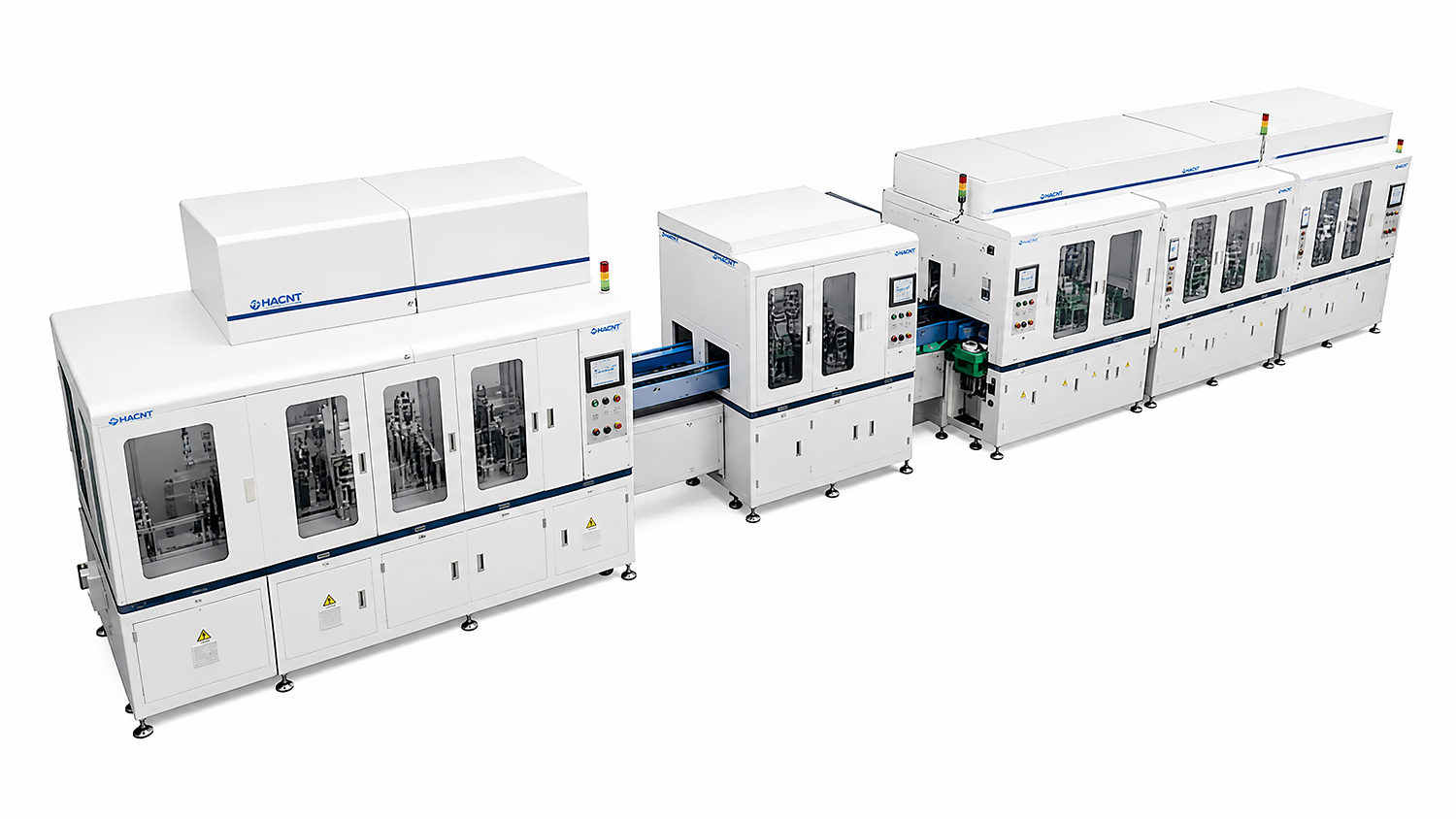

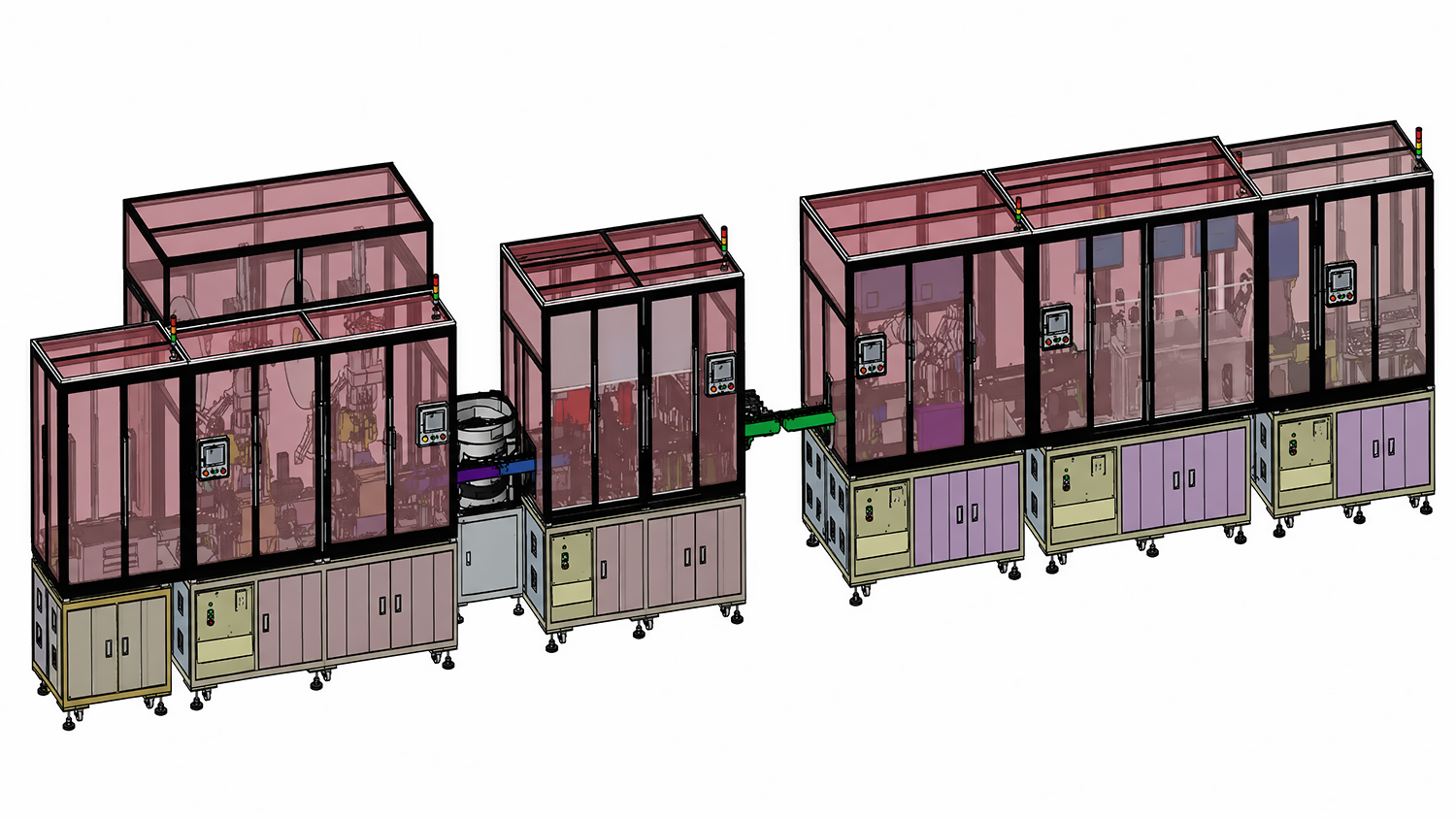

ExaMAX2 high-speed backplane assembly and inspection line

Technical parameters

Technical parameters

Item Parameters
Size 13550mm*2150mm*2400mm
CT ≤ 3 s
Capacity 1,020 pcs/h
Yield ≥ 99%
Operation rate ≥ 90%
