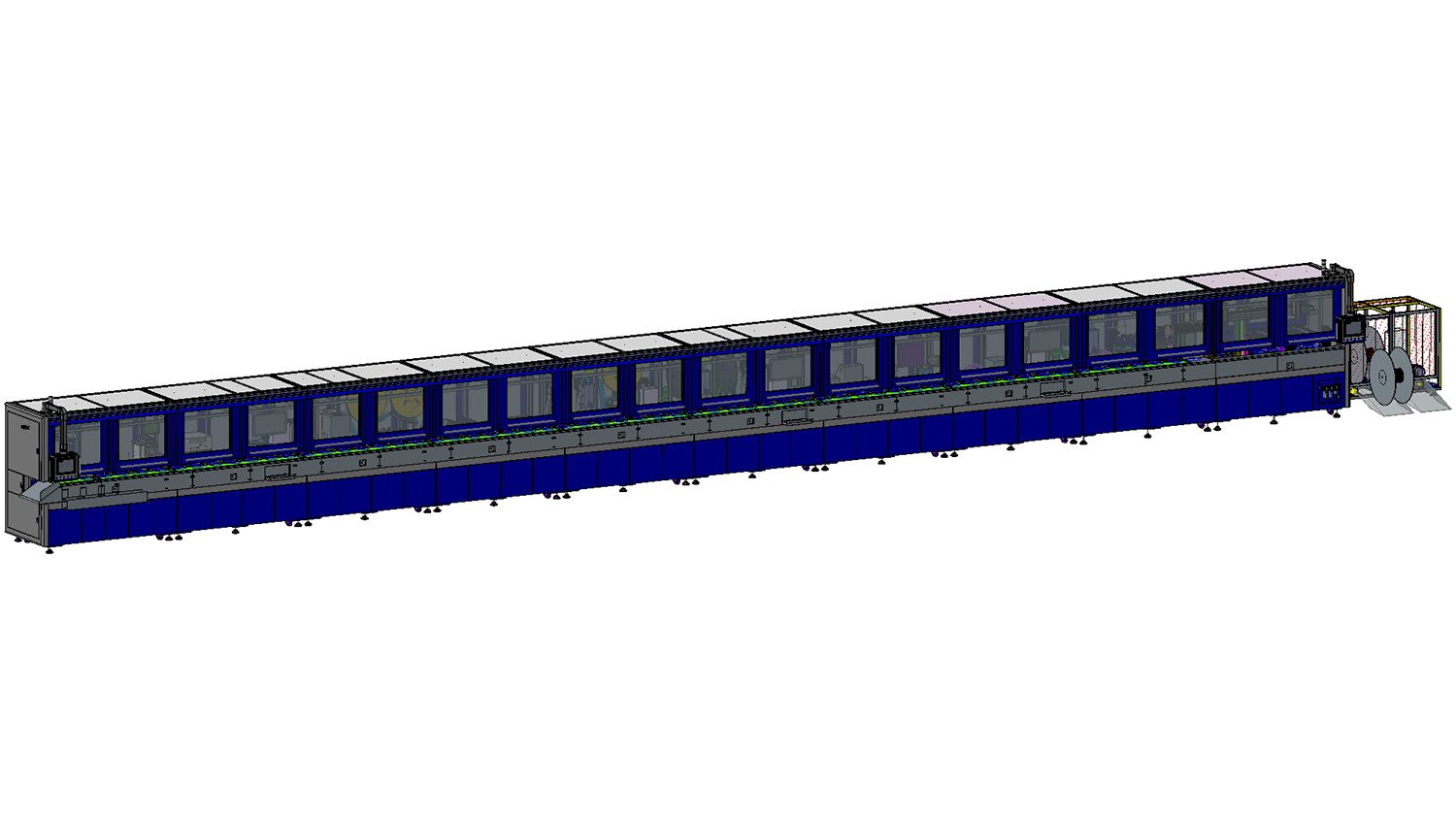

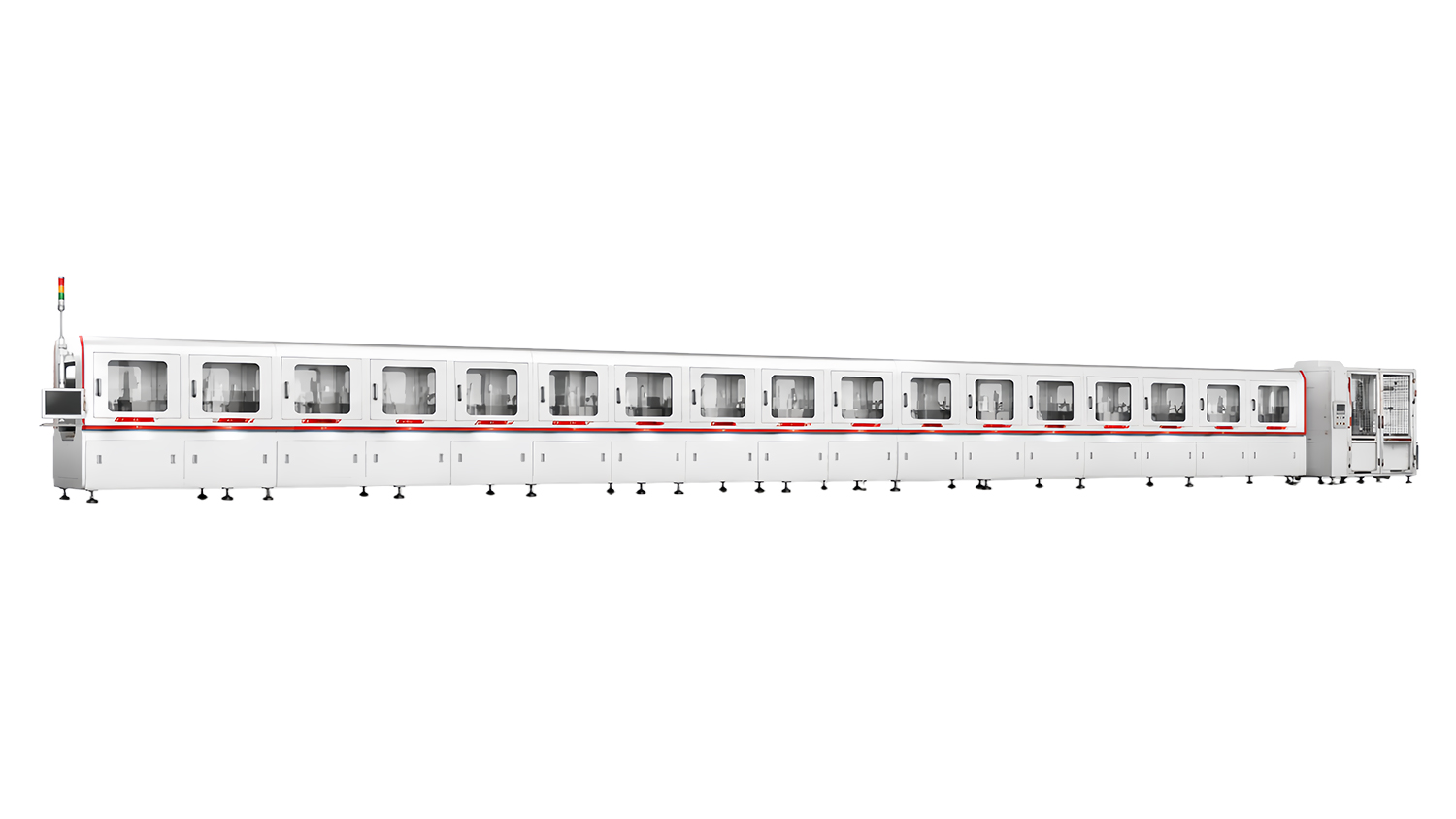

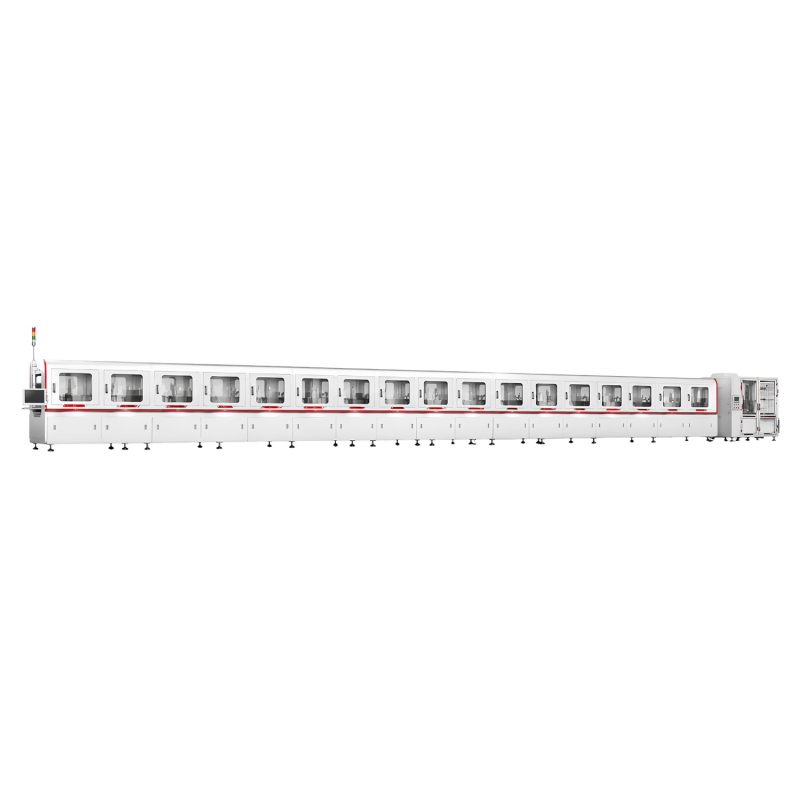

Fully Automatic RT Version Ethernet Cable Assembly and Testing Line

Integrated intelligent production testing equipment specially built for RT type (including CAT6A (RT) and other specifications) Ethernet cables. It can quickly complete tests for continuity, line sequence, short circuit, open circuit, insulation, shielding layer and other items, and automatically determine whether it is qualified or defective. It is suitable for network production, process inspection and finished product factory inspection. It is stable, reliable and easy to operate.

Service and support dial400 830 1117
Submit requirements
Product introduction

Product introduction

Application scenarios

Industry: Network cable manufacturing, wire harness processing, weak current communication industry

Applicable products: Customized for the wire harness assembly and testing process of CAT5e/CAT6 and other Ethernet cables

Production line compatibility: suitable for manual/semi-automatic/fully-automatic assembly lines

Core advantages

Technical parameters

Technical parameters

Item Parameters
Dimensions 23000mm × 1200mm × 1950mm
CT ＜8s
OEE ≥85%
First pass rate ≥99%
Production capacity UPH reaches 900 Pieces (single-ended)
Processing length 100-3000mm

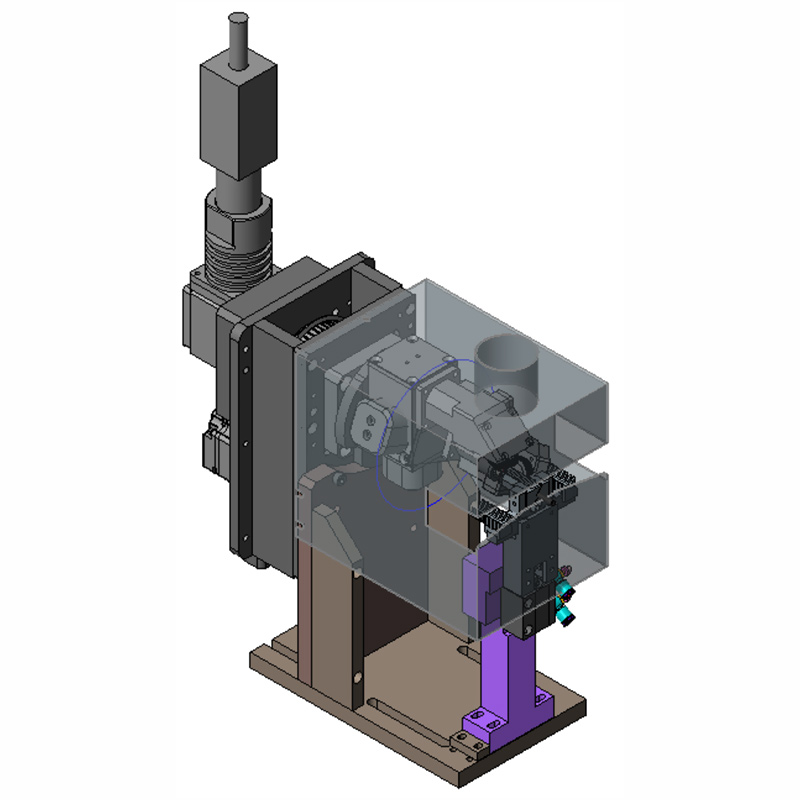

Crimping monitoring Pressure curve monitoring / preventing poor crimping / missing wire / missing core
Visual inspection Stripping size, inner conductor exposed, assembly in place, color
Electrical test Continuity, short circuit, open circuit, insulation resistance
