Consumer Electronics

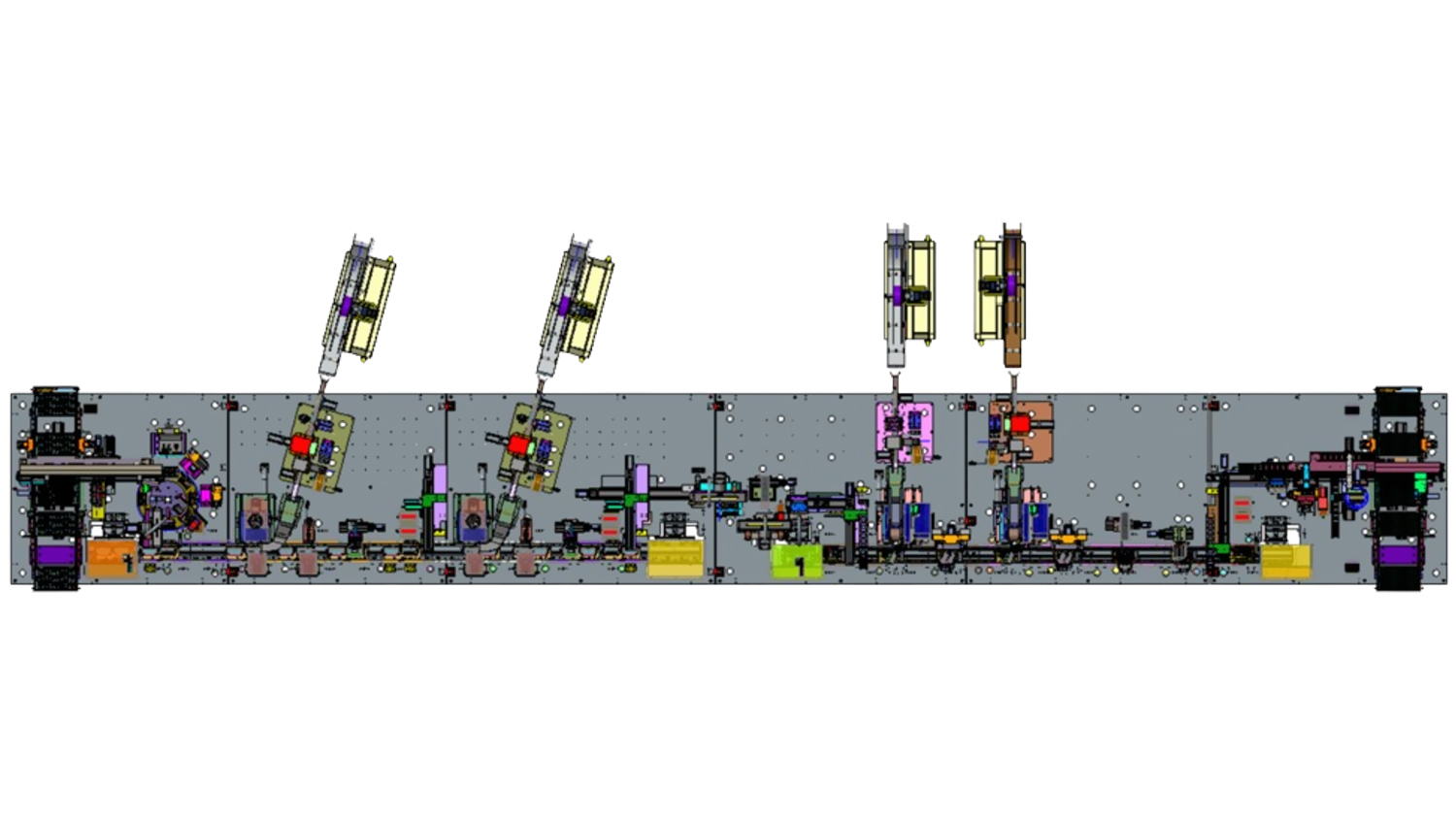

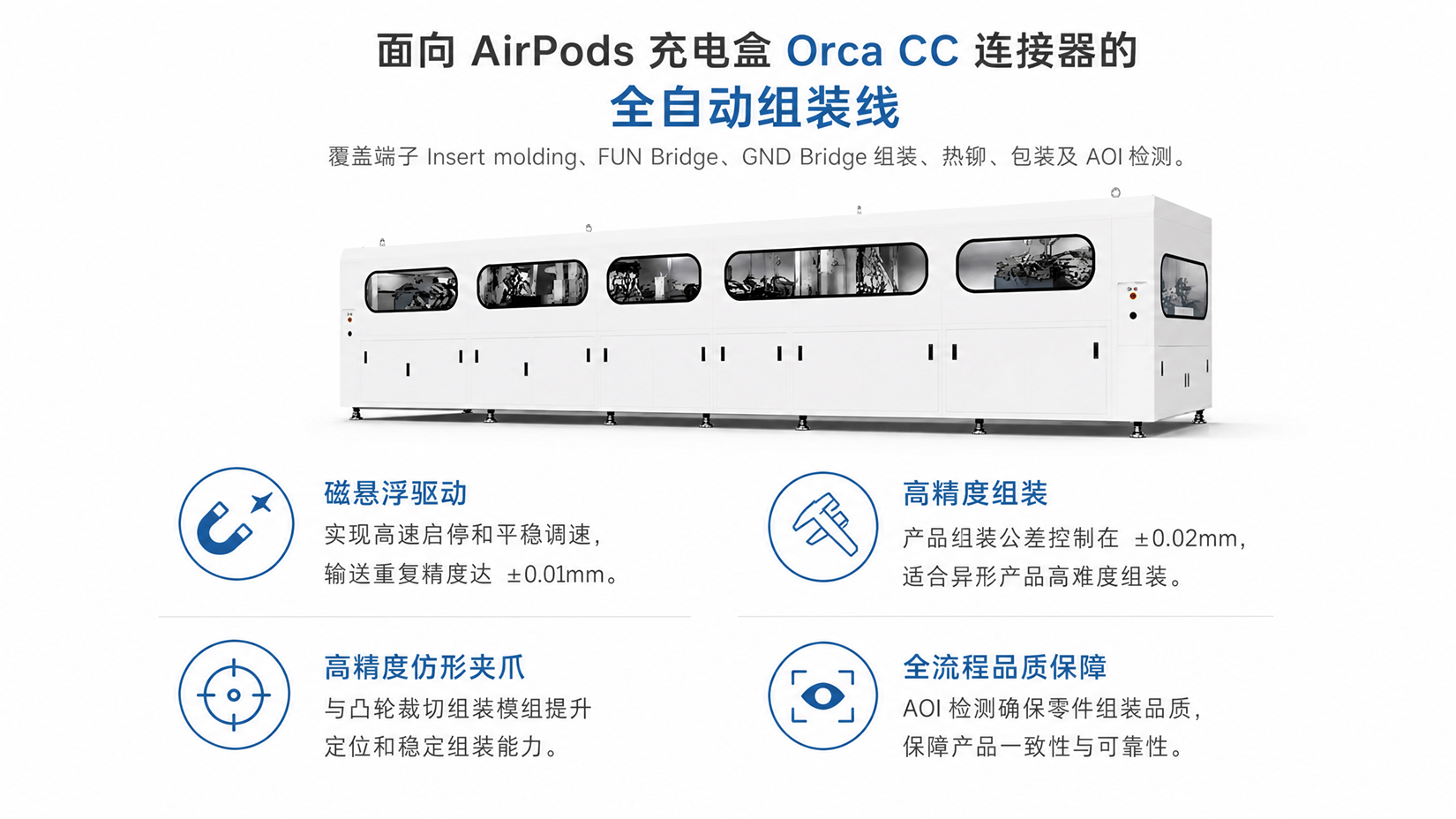

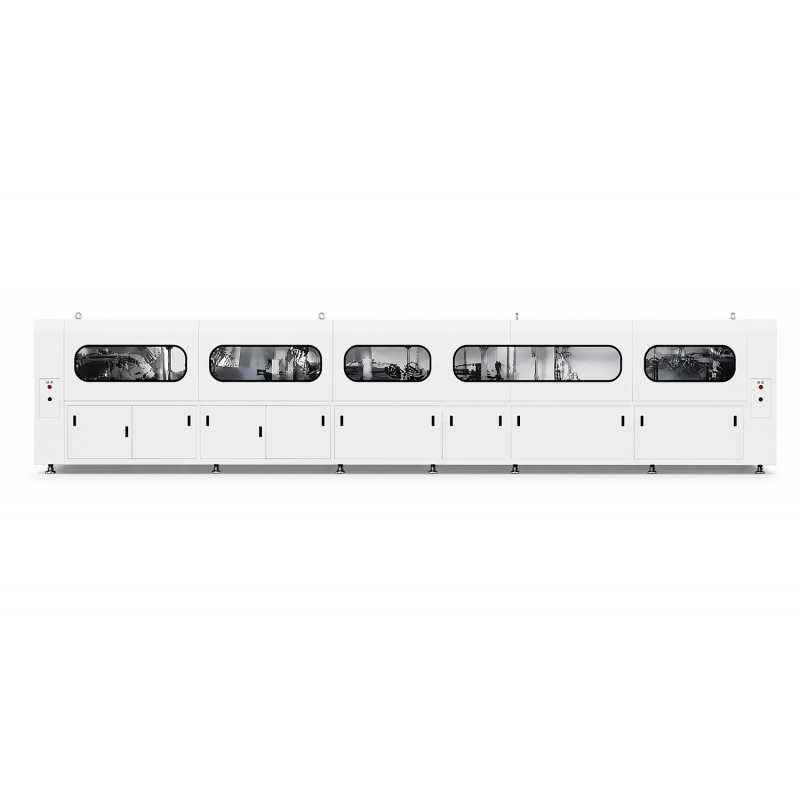

Fully automatic assembly line for AirPods charging box Orca CC connector, covering terminal insert molding, FUN Bridge, GND Bridge assembly, heat riveting, packaging and AOI inspection.

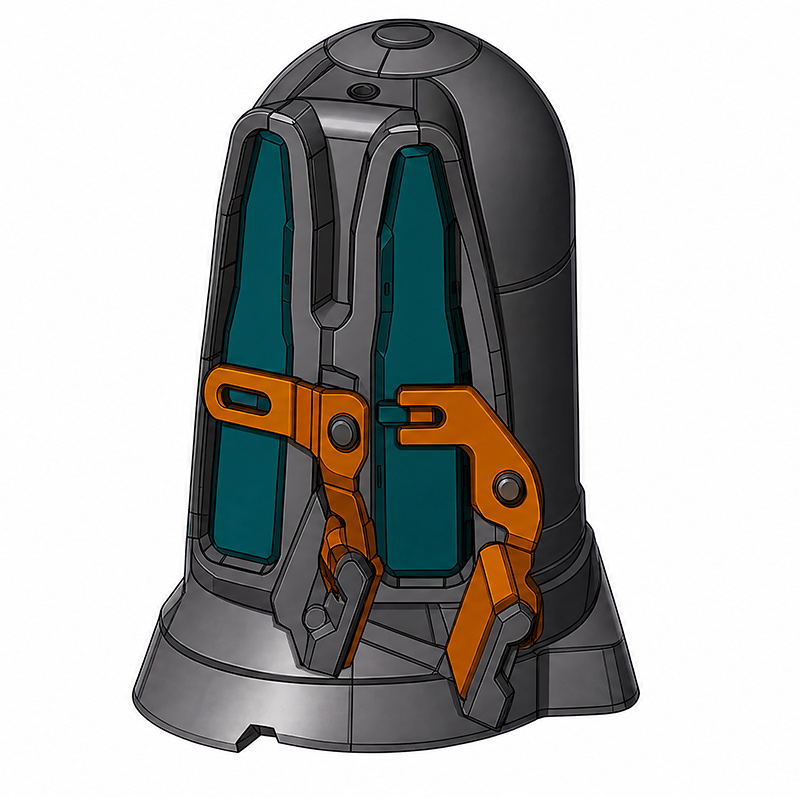

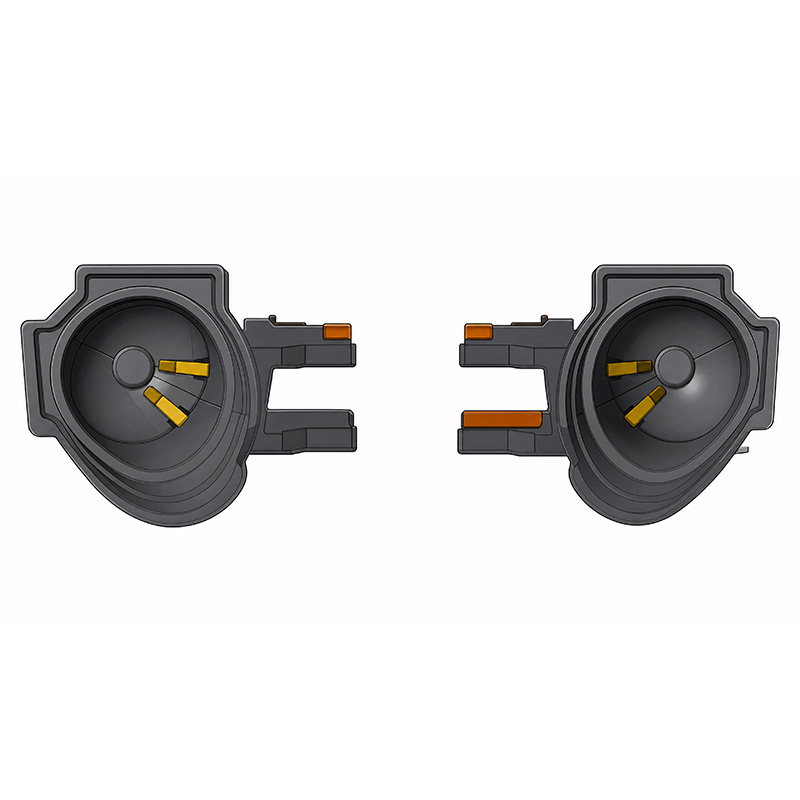

AirPods charging case connector assembly.
Suitable for high-precision automatic assembly of special-shaped Housing, IM and Bridge.
| Item | Parameters |
|---|---|
| Core process | Insert molding, FUN Bridge assembly, GND Bridge assembly, hot riveting, packaging, AOI inspection |
| Test items | Terminal bullet height dimension AOI detection |
| Conveying repeatability accuracy | ±0.01mm |
| Product assembly tolerance | ±0.02mm |
| Equipment beat | CT＜1.3s |
| Project Difficulties | Special-shaped Housing positioning, IM/Bridge stable assembly, appearance anti-scratch and anti-bright mark |
