High-Speed Cables

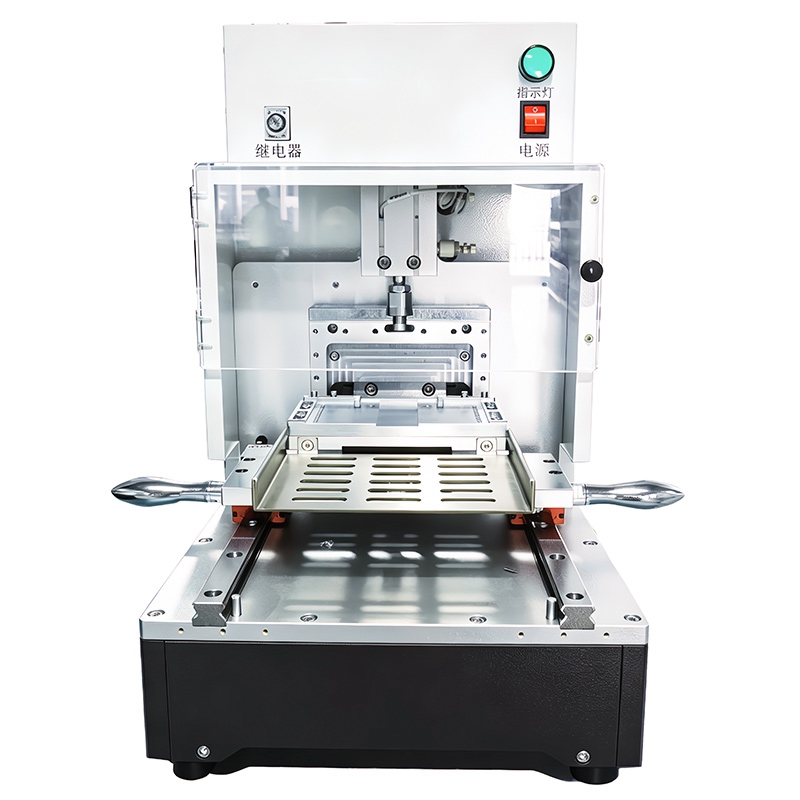

The desktop type shearing and shaping machine is used for precision processing such as high-speed cable conductor shearing, pre-shaping and final shaping. It is suitable for stand-alone deployment and can also be used as a process verification or supplementary work station for automatic line pre-processing modules.

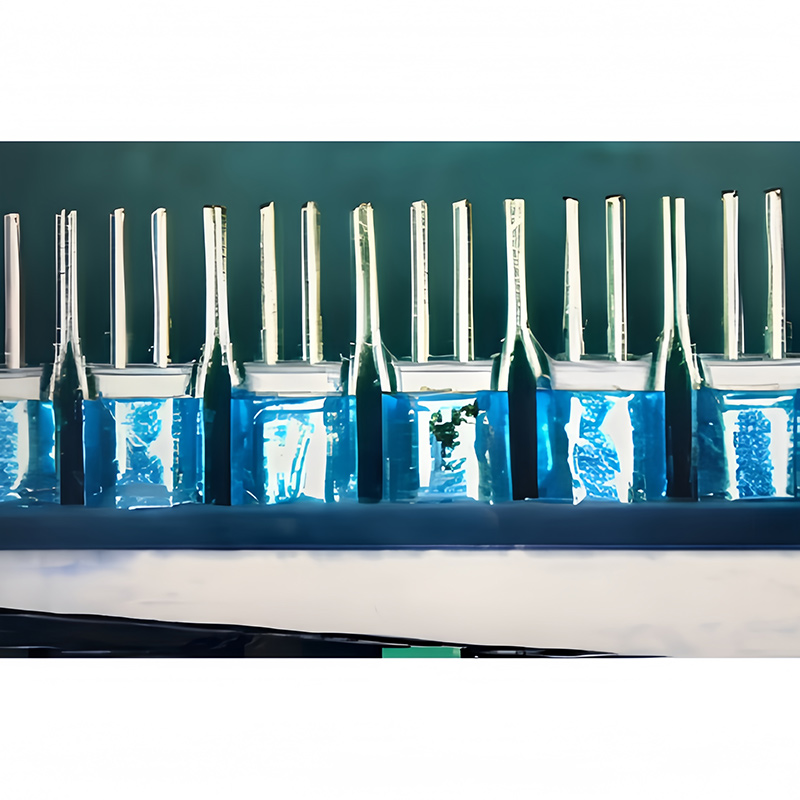

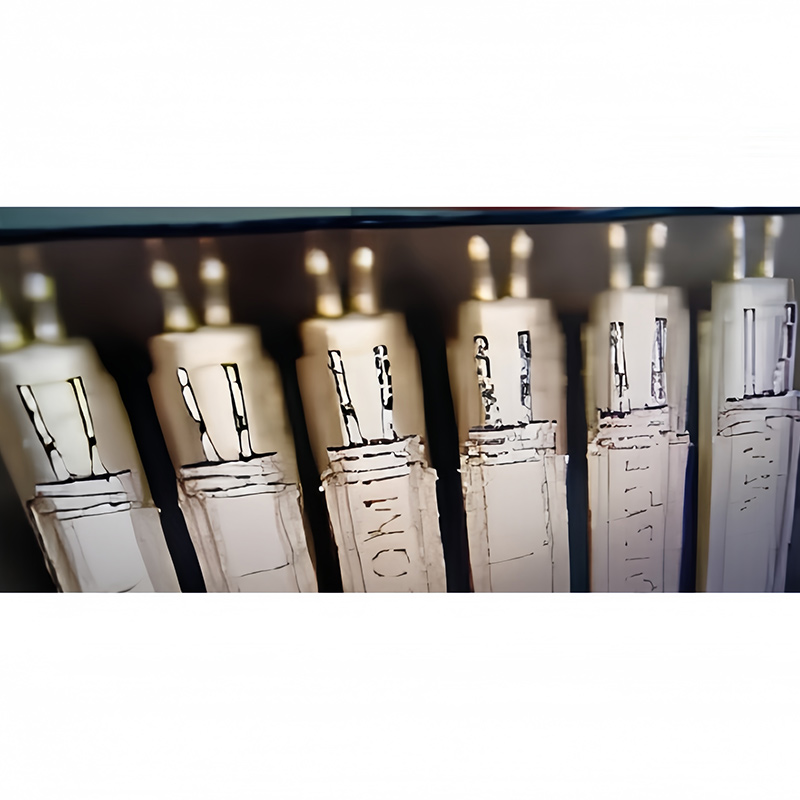

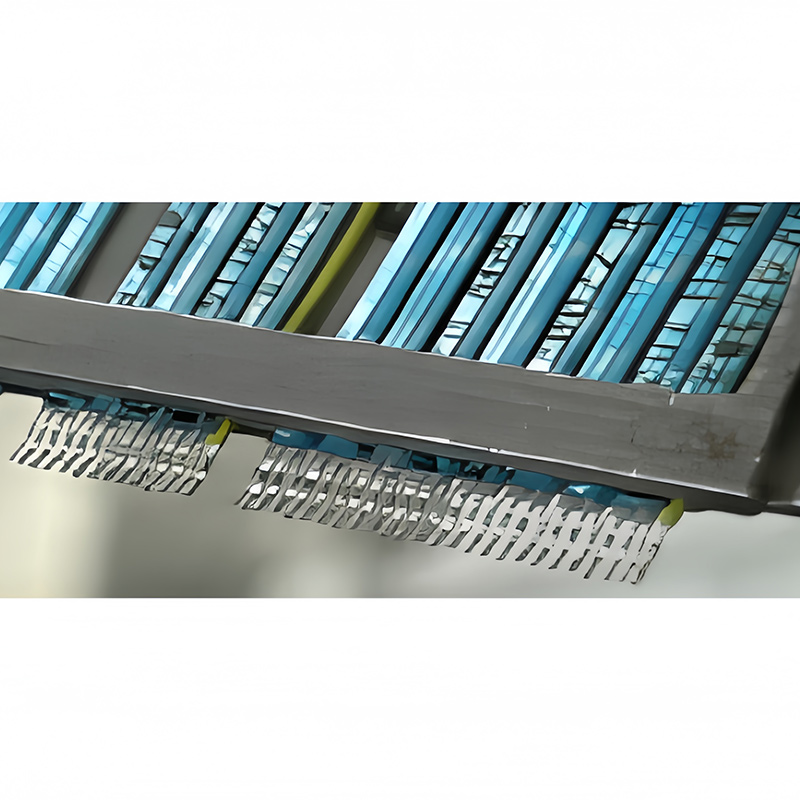

Cutting, trimming and shaping of high-speed cable conductors.
Suitable for R&D proofing, process verification, small batches or off-line supplementary processing.
| Item | Parameters |
|---|---|
| Rated voltage | AC220V 50Hz |
| Rated power | 1.5 kVA/3.0 kVA |
| Working pressure | 0.5-0.7 MPa |
| Cooling method | Passive cooling + active cooling |
| Adjustment method | Temperature closed-loop feedback control system, pressure sensing monitoring and feedback system |
| Welding head height adjustment | 0-80 mm |
| Welding head stroke | Fixed |
| Welding platform entry and exit method | Manual/automatic |
| Welding platform size | 90×90 mm, can be customized |
| Netweight | 30 kg + 20 kg |
| Optional accessories | CCD display/automatic tin feeder |
| Dimensions | Power supply: L420 × W210 × H335mm; platform: L430 × W250 × H500mm |
