High-Speed Cables

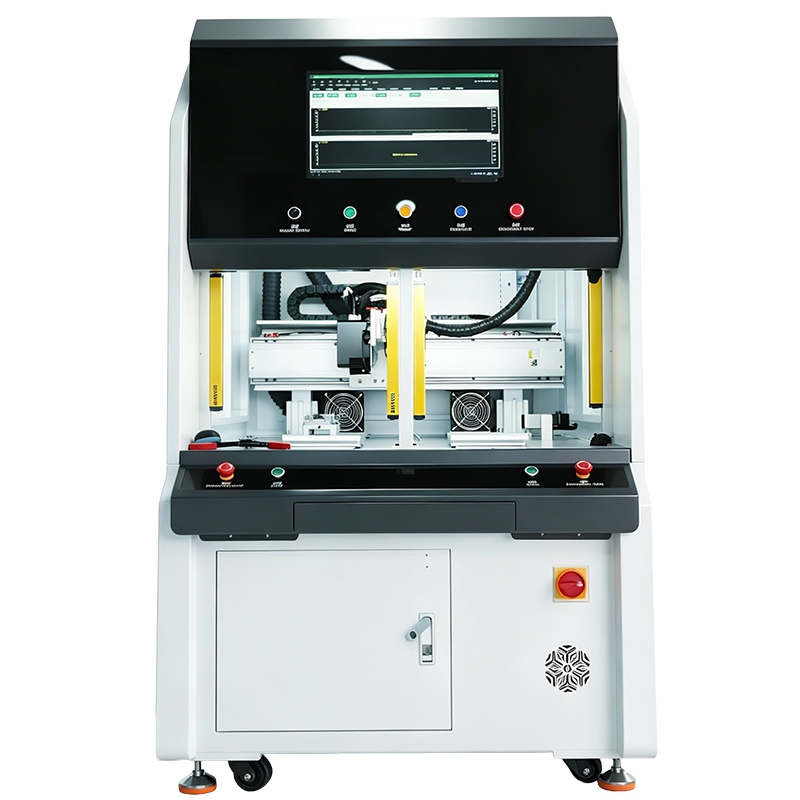

3D vision positioning PGRS welding machine uses 3D vision to position PCB pads and conductors to be welded, calculates deviations in real time and feeds them back to the main control system to complete fast, accurate, low heat input PGRS welding.

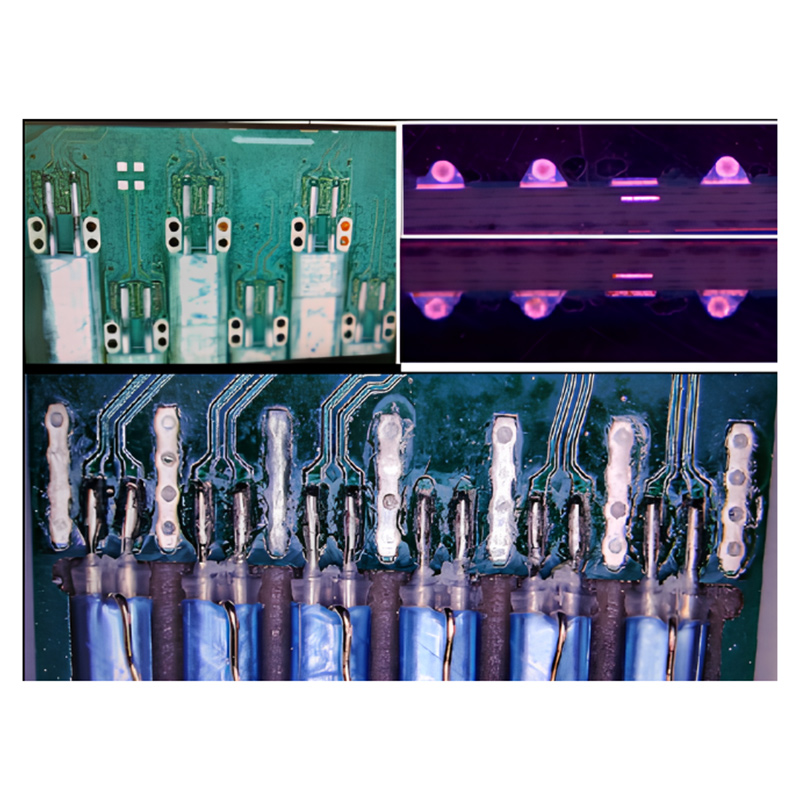

Vision-guided soldering of high-speed cable conductors to PCB pads.
Suitable for pre-tinned welding, thermal high-speed wire and high-consistency welding scenarios.
| Item | Parameters |
|---|---|
| Rated voltage | AC220V 50Hz |
| Equipment power | <3.0 kW |
| Welding power supply voltage | 800 W |
| Welding duration | <20 ms |
| Correction angle | ±6° |
| CT/beat | About 1.5s/solder joint |
| Dimensions | L 800 x W 1000 x H 1680 mm |
